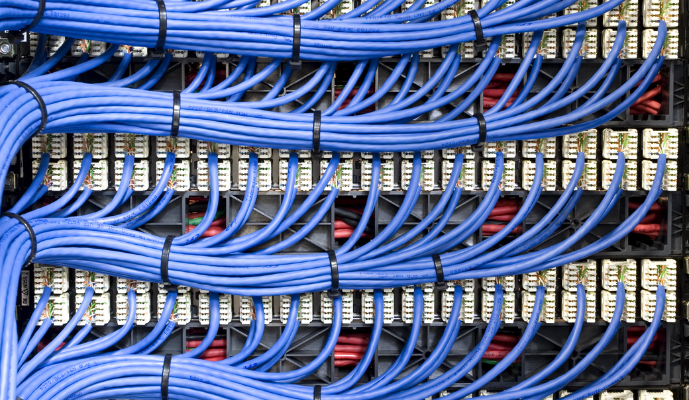

Why structured cabling matters for cutting downtime and lowering IT costs
Structured cabling is a methodical way to design and install a building’s cabling so voice, data, and video follow standardized pathways and termination points. That predictability—consistent labeling, documented routes, and modular hardware—reduces downtime and lowers IT spend by making troubleshooting and upgrades faster and less risky. This article shows how organization and standards speed fault isolation, cut maintenance costs, and create scalable systems that support fiber, copper, and PoE. We cover root causes of cabling outages, quantify cost savings, compare fiber and copper performance, list the standards and components that matter, and offer a phased roadmap plus practical installation, testing, and maintenance tips. The result: IT and facilities teams can prioritize cabling investments that deliver measurable operational and financial returns.
How does structured cabling reduce IT downtime?
Structured cabling reduces downtime by giving technicians predictable pathways, clear labels, and an up-to-date topology so faults are isolated quickly and methodically. When cables, patch panels, and racks follow consistent rules, teams can trace a failed connection without guesswork—shortening mean time to repair (MTTR) and reducing the business impact of outages. Industry analysts find that organized cabling dramatically cuts troubleshooting time, which leads to fewer service interruptions and steadier maintenance windows. The sections that follow identify common cabling failure modes and show how standardization and organization translate into practical mitigation steps.
What causes network downtime related to cabling?
Cabling-related outages usually come from undocumented runs, poor terminations, physical damage, and inconsistent standards that produce unclear port mappings. Those issues multiply human error during moves, adds, and changes because technicians can’t reliably tell which patch connects to which device. Intermittent faults from bad terminations create packet loss and retransmissions that appear as slow apps or dropped sessions. Environmental problems—exceeded bend radius, overcrowded trays, or insufficient separation from electrical runs—also raise failure risk, especially on dense PoE installs. The cure is straightforward: standardized labeling, accurate cable maps, and routine inspections that shift troubleshooting from reactive to proactive.
How do organization and standardization minimize outages?
Organization and standardization turn every cable and connector into a known quantity within the network fabric, which lets teams isolate and fix faults without trial-and-error. When patch panels, racks, and outlets use a documented numbering scheme and color conventions, technicians can replace a bad segment without touching neighboring services. That consistency enables automated inventory and port-mapping tools that speed diagnostics and reduce mistakes. These controls also support regular certification testing and targeted replacements—preventing surprise failures and protecting uptime during upgrades.
Core organizational measures that directly reduce downtime and their operational effects.
Consistent labeling: Labels on both ends of each run let technicians identify and replace faulty cables quickly.
Patch panel standardization: Matching panel sizes and port numbering eliminate ambiguity during moves and changes.
Documented topology maps: Current cable maps and rack elevations shorten hands-on isolation and repair time.
These practices convert ad hoc fixes into repeatable procedures that lower MTTR and let teams schedule maintenance instead of firefighting outages.
What are the key cost savings from structured cabling?
Structured cabling produces measurable savings across maintenance labor, hardware replacement, upgrade projects, and revenue loss from downtime by reducing complexity and extending component life. Standardized systems cut the time technicians spend tracing faults—reducing hourly labor and overtime—while enabling staged upgrades instead of costly full replacements. Better cable management and consolidated racks can lower cooling costs, and accurate labeling prevents misconfigurations that cause outages. The table below summarizes typical cost categories and how a structured approach changes the financial picture versus unstructured cabling.
|
Cost Category |
Characteristic (Unstructured) |
Characteristic (Structured) |
|---|---|---|
|
Maintenance Labor |
High: lengthy troubleshooting and ad hoc repairs |
Lower: faster fault isolation and repeatable procedures |
|
Hardware Replacement |
Frequent: confusion prompts premature swaps |
Reduced: targeted replacements and staged upgrades |
|
Downtime Loss |
Significant: longer outages cause measurable revenue impact |
Minimized: quicker recovery and planned change windows |
In short, structured cabling shifts spending from emergency fixes to planned maintenance, improving forecasting and reducing unexpected IT expenses.
How does structured cabling lower maintenance and repair expenses?
By shortening diagnostic time, enabling modular replacements, and supporting tiered service responses, structured cabling cuts maintenance and repair costs. Faster fault isolation reduces billable technician hours and end-user downtime, while modular patching and spare ports allow single-link swaps without touching production paths. Over several years, capacity planning and staged upgrades lower the replacement rate for backbone components. Together, these effects stabilize operating expenses and make network budgeting more predictable for IT and finance teams.
What are the long-term IT cost benefits of structured cabling?
Long-term benefits include longer asset life, lower upgrade spending through backward-compatible cabling choices, and better asset utilization thanks to accurate documentation. Structured systems support incremental upgrades—adding multi-mode or single-mode fiber in the backbone—without ripping out horizontal copper runs unnecessarily, deferring large capital expenses. Clear certification records also increase the resale or repurpose value of cabling and hardware when sites are relocated or consolidated. These outcomes improve ROI across 3–5 year planning horizons and make total cost of ownership projections more reliable.
Three primary ROI categories organizations typically realize.
Maintenance and repair savings: Fewer technician hours and fewer emergency fixes lower OPEX.
Upgrade cost avoidance: Phased improvements prevent disruptive, high-cost replacements.
Downtime reduction: Faster recovery preserves revenue and productivity.
Together, these cost centers show how a strategic cabling investment produces predictable financial and operational gains.
How does structured cabling enhance network performance and efficiency?
Structured cabling preserves performance and efficiency by ensuring correct cable types, proper terminations, and disciplined cable management so links remain stable under load. Best practices—respecting bend radii, separating from EMI sources, and securing terminations—reduce crosstalk and attenuation, which in turn lowers packet errors and retransmissions that hurt applications. Well-engineered cabling supports PoE deployments, dense switch aggregation, and reliable uplinks to data centers or cloud edge nodes, delivering predictable latency for sensitive services. The next sections explain how fiber and copper choices affect speed and why a tidy cabling system supports seamless data flow.
What role do fiber optic and copper cabling play in network speed?
Fiber provides higher bandwidth and lower attenuation over long distances, while copper (Cat5e/Cat6/Cat6a) offers cost-effective horizontal connectivity and PoE for shorter runs—so both are complementary in a structured design. Single-mode fiber suits long-haul backbone links; multi-mode fits intra-building or data-center connections. Quality copper with correct shielding and terminations reliably serves desktops and access points. Following installation best practices—maintaining bend radius, grounding properly, and using certified connectors—reduces errors and preserves throughput under heavy traffic. Choosing the right mix and installing it correctly reduces packet loss and keeps application performance consistent.
Optimizing high-speed network performance is a key advantage of a professionally implemented structured cabling system.
Structured cabling for high-speed network optimization
This paper presents a model for optimizing bandwidth in high-speed communication networks using structured cabling and enhanced receiver design.
The role of integrated structured cabling system (ISCS) for reliable bandwidth optimization in high-speed communication network, J Logeshwaran, 2022
How does structured cabling support seamless data transfer and connectivity?
Structured cabling enforces end-to-end quality: certified links, labeled ports, and inventoried connectors ensure devices connect over known-good paths that meet performance specifications. When installers certify links at handover, they record link margin and SNR metrics, which speeds later diagnosis if performance changes. That baseline supports latency- and throughput-sensitive workloads—VoIP, video conferencing, backups—by making it easier to map application issues to physical-layer metrics. With preserved documentation and certification records, teams can target fixes precisely instead of making broad network changes.
Installation best practices that protect performance and reliability.
Adhere to bend radius and tension limits: Prevents attenuation and connector damage.
Maintain separation from power cables: Reduces EMI-related errors on copper pairs.
Use certified terminations and patch cords: Ensures end-to-end performance matches design intent.
These practices keep the physical layer predictable and simplify fault isolation.
Why is structured cabling considered a future-proof solution?
Structured cabling is future-proof because it builds in headroom, modularity, and standards compliance so new technologies can be added without wholesale infrastructure replacement. A future-ready strategy includes spare pathways, modular patching, and backbone capacity planning so higher-speed links or additional PoE nodes can be introduced with minimal disruption. Standards adherence and complete documentation make upgrades—whether for 5G small cells, dense IoT deployments, or edge AI—plug into a predictable physical fabric. The following sections describe how structured cabling supports emerging tech and what scalability features matter for growing businesses.
How does structured cabling support emerging technologies like 5G, IoT, and AI?
Structured cabling supplies the dense, documented ports and backbone capacity required for 5G, IoT, and AI workloads. For 5G small cells and distributed antenna systems, a backbone with spare fiber and sufficient copper pairs for PoE enables rapid rollouts without major construction. IoT programs benefit from modular panels and labeled work-area outlets that make adding hundreds or thousands of sensors manageable. Edge AI needs predictable uplinks and low-latency aggregation, which a properly designed fiber backbone and switch uplink plan deliver.
What makes structured cabling scalable for growing business needs?
Scalability comes from modular panels, spare capacity, and documented port-reservation practices that let organizations expand endpoints incrementally. Planning for extra conduit, additional fiber strands, and room on patch panels prevents capacity shortfalls and avoids emergency construction. Capacity budgeting—estimating port counts and bandwidth headroom by floor or zone—lets IT teams phase purchases and avoid over‑provisioning. Those practices produce a predictable change-management model that keeps disruption low as requirements evolve.
Key scalability attributes include:
Spare ports and conduit: Enable immediate expansion without physical rework.
Modular paneling: Simplifies adding runs and reassigning services.
Documented capacity plans: Prevent unexpected shortages during growth.
Together, these attributes form a physical foundation that supports technology change with modest incremental investment.
What are the essential components and industry standards of structured cabling?
A complete structured cabling system includes horizontal and backbone cabling, patch panels, racks and enclosures, work-area outlets, and cable-management hardware. Industry standards such as TIA‑568, ISO/IEC 11801, and IEEE 802.3 define performance, testing, and interoperability requirements so components from different vendors behave predictably. Selecting compliant components and following standards reduces installation risk and provides measurable metrics for validation. The table below compares common components, their relevant standards, and typical benefits to guide component choice for enterprise networks.
Industry standards are essential for ensuring quality and interoperability across wired network components.
Structured cabling standards for wired networks
This study examines cabling standards and their role in cost optimization for IP-based networks.
Cabling and cost optimization system for IP based networks through Genetic Algorithm, 2014
|
Component |
Standard/Spec |
Typical Benefit/Spec Example |
|---|---|---|
|
Cat6/Cat6a Copper |
TIA-568 / ISO/IEC 11801 |
1 Gbps–10 Gbps horizontal links up to 100 m (Cat6a for 10G) |
|
Multi-mode Fiber (OM3/OM4) |
ISO/IEC 11801 |
Short-to-medium distance, high-bandwidth backbone for data-center links |
|
Single-mode Fiber |
ITU / ISO Standards |
Long-distance backbone linking buildings and core switches |
|
Patch Panels & Connectors |
TIA / Manufacturer specs |
Organized termination points enabling modular swaps and clear labeling |
Which components constitute a reliable structured cabling system?
A reliable system uses properly specified horizontal cabling (Cat6/Cat6a), a fiber backbone sized for distance and bandwidth, labeled patch panels, accessible work-area outlets, racks and enclosures, and effective cable management like trays and ties. Each element has a role: patch panels and connectors terminate runs, racks house active gear, and trays route bundles to prevent strain and interference. Choosing components that meet TIA‑568 and ISO/IEC 11801 categories ensures the physical layer supports expected Ethernet speeds and PoE. Good component selection reduces field rework and simplifies certification testing.
How do TIA, ISO/IEC, and IEEE standards ensure cabling quality?
These standards define performance classes, testing procedures, and interoperability guidelines that installers use to certify links. TIA‑568 and ISO/IEC 11801 set categories and classes for copper and fiber, while IEEE 802.3 specifies Ethernet signaling and PoE requirements the cabling must support. Certified testers measure insertion loss, return loss, and NEXT against those criteria and generate reports that verify link capability. Standards compliance reduces compatibility risk, gives objective acceptance criteria, and supports warranty and lifecycle planning.
Adhering to standards such as TIA‑568 and ISO/IEC 11801 is fundamental for reliable cabling installations, including fiber.
TIA‑568 & ISO standards for data cabling
These references explain how the TIA‑568 series and related ISO guidance apply to data cabling installations and compliance testing.
Fiber cabling fundamentals, installation, and maintenance, 2021
Installer checklist: key compliance checkpoints to document.
Category/class test results: Archive certification reports for each horizontal and backbone link.
Patch panel and port labeling: Verify numbering matches topology maps and documentation.
Environmental and separation checks: Confirm bend radius, conduit fill, and EMI separation.
Documented compliance connects design intent to operational reality, enabling predictable performance and easier troubleshooting.
How should businesses implement structured cabling for maximum benefits?
To capture maximum value, use a phased implementation: site survey and design, professional installation and labeling, testing and certification, and ongoing maintenance and documentation. A disciplined procurement process—specifying standards compliance, acceptance testing criteria, and installer qualifications—reduces ambiguity and ensures the deliverables meet operational needs. Professional installers should hand over labeled patch panels, certification reports, and as‑built documentation so IT teams can manage changes confidently. The table below lists common deliverables and expected outcomes to guide procurement and project planning.
|
Phase |
Deliverable |
Expected Outcome |
|---|---|---|
|
Survey & Design |
Site survey, capacity plan, schematic |
Accurate bill of materials and a scalable topology |
|
Installation & Labeling |
Installed cabling, labeled panels, cable management |
Predictable connectivity and reduced MTTR |
|
Testing & Certification |
Link certification reports, acceptance testing |
Verified performance and baseline documentation |
|
Maintenance |
Scheduled re-testing, updates to maps |
Sustained uptime and simpler upgrades |
What are best practices for professional installation and design?
Best practices include a thorough pre-installation site survey, specifying standards-based components, enforcing dedicated pathways and segregation, and producing detailed as-built documentation and certification reports. Good designs anticipate growth by allocating spare conduit, extra fiber strands, and patch-panel space so future expansions are minimally disruptive. During installation, label both ends of every run and validate terminations to avoid ambiguity. Delivering comprehensive certification and topology documentation puts IT teams in control and removes the need for invasive discovery later.
How does structured cabling simplify network management and troubleshooting?
Structured cabling makes physical connections predictable and documentable, which integrates cleanly with inventory and network-management systems. With a certified baseline and clear labeling, technicians can map outages to specific physical links and isolate faults without touching unrelated equipment—reducing MTTR and preventing accidental impacts. Routine maintenance—periodic certification, label updates, and visual inspections—keeps documentation accurate. In complex environments, pairing structured cabling with port-mapping tools creates a physical-to-logical knowledge graph that speeds incident response and capacity planning.
Follow this concise how-to sequence to implement these practices.
Perform a site survey and create a capacity-based design: Define topology and spare capacity.
Install components to standards and label every endpoint: Ensure traceability and expected performance.
Test and certify every link before acceptance: Record baseline performance metrics.
4. Maintain documentation and schedule periodic re-testing: Keep maps current and validate changes.
